ARDUINO GAME CONSOLE

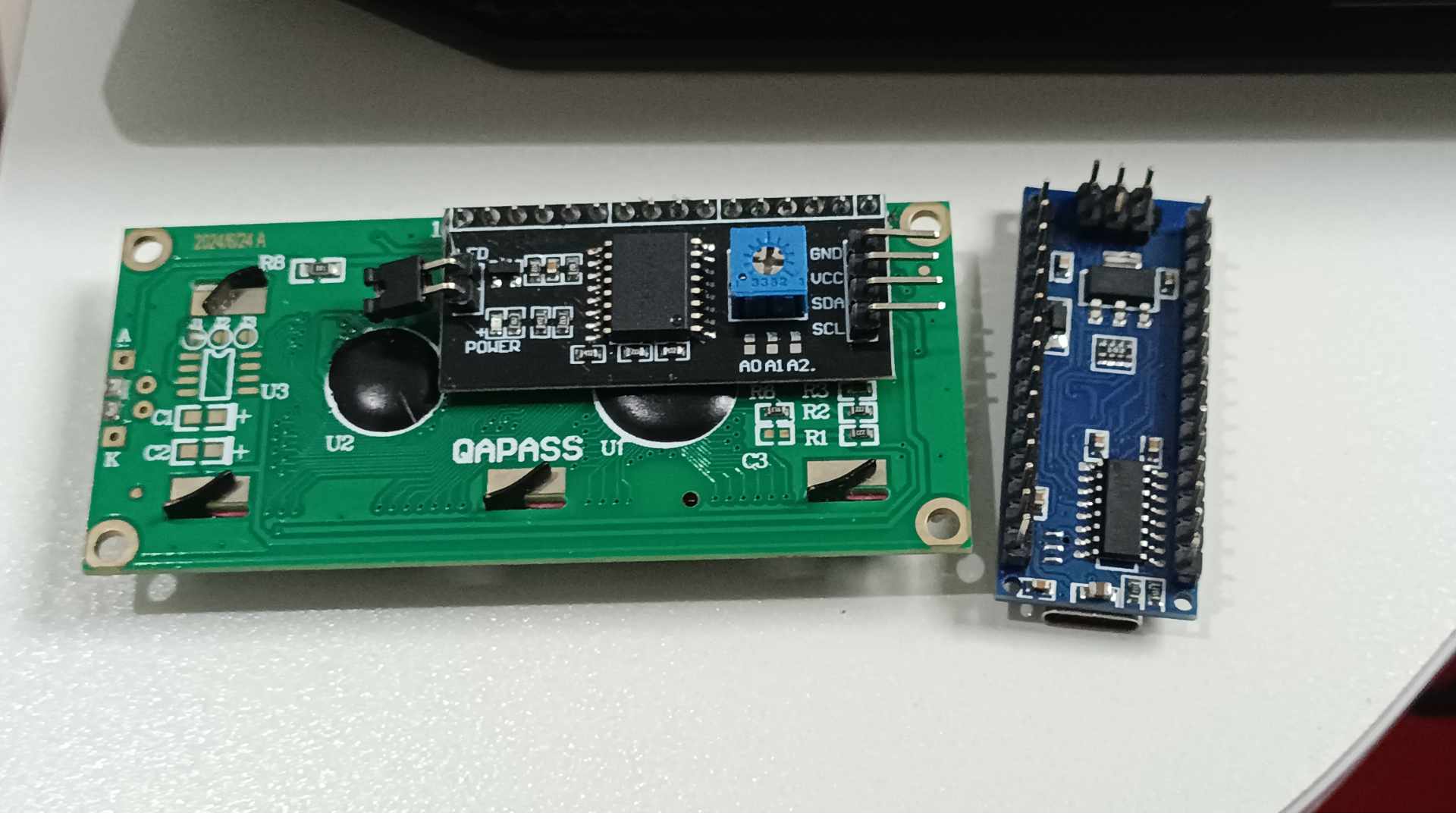

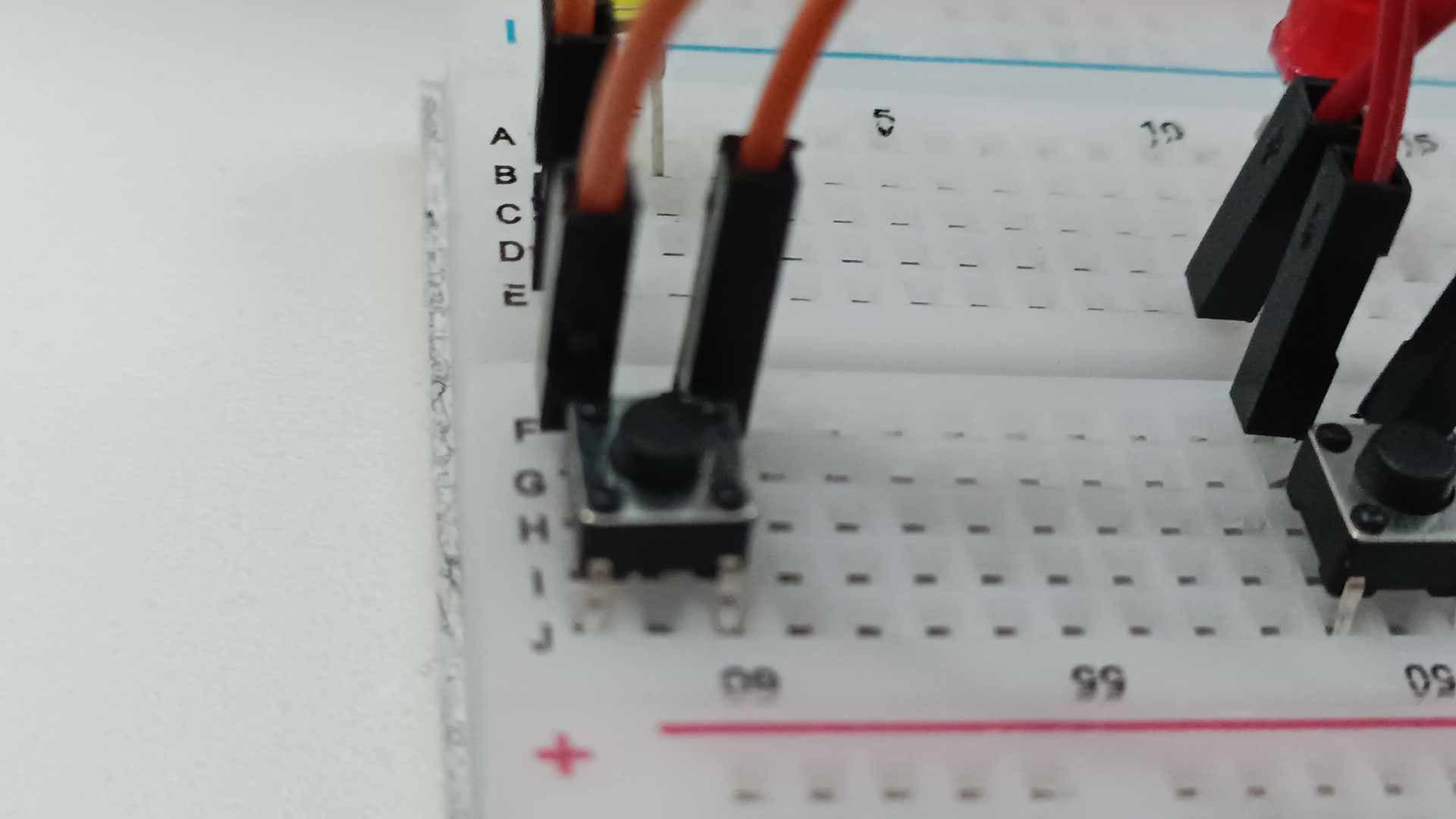

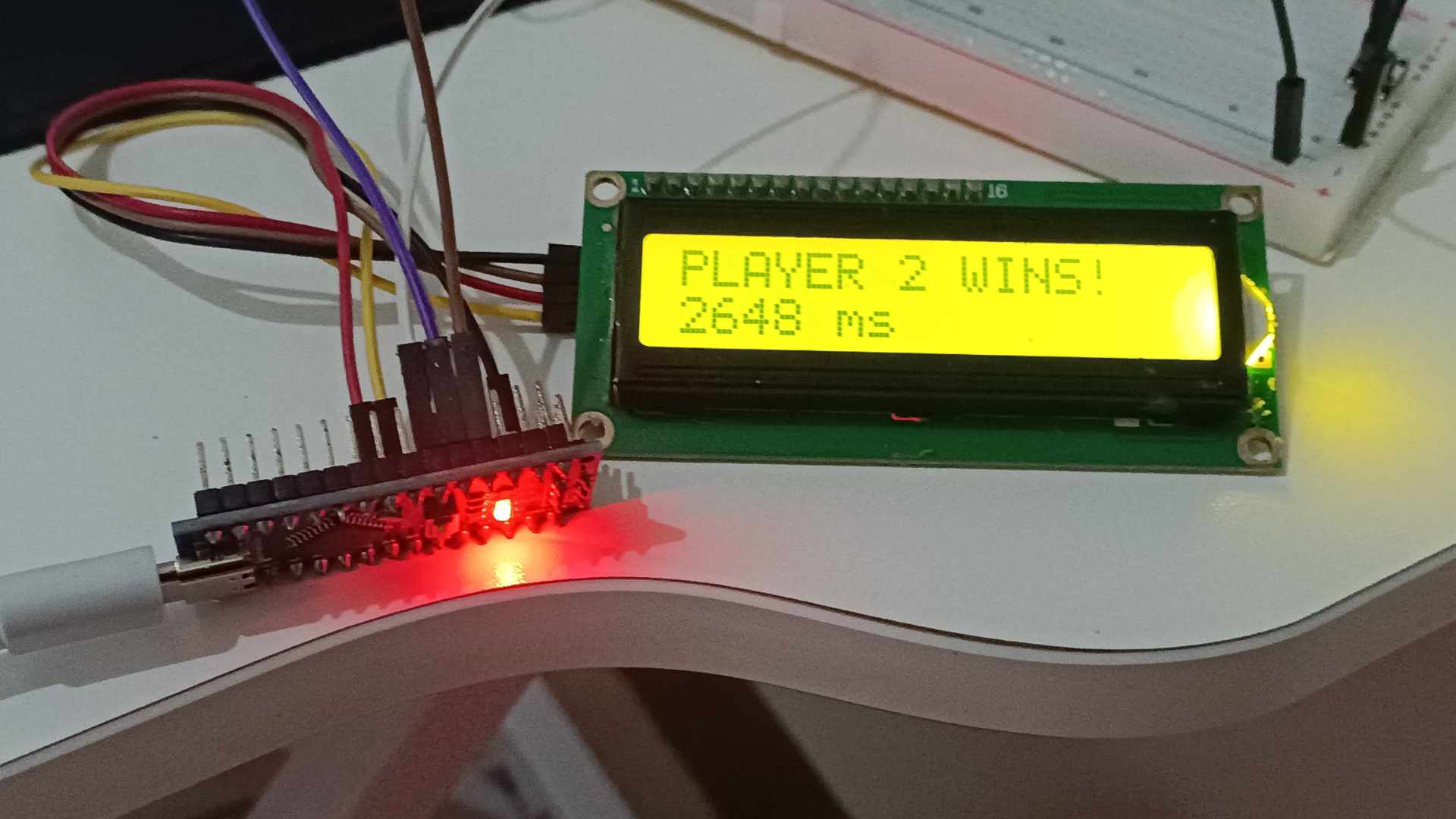

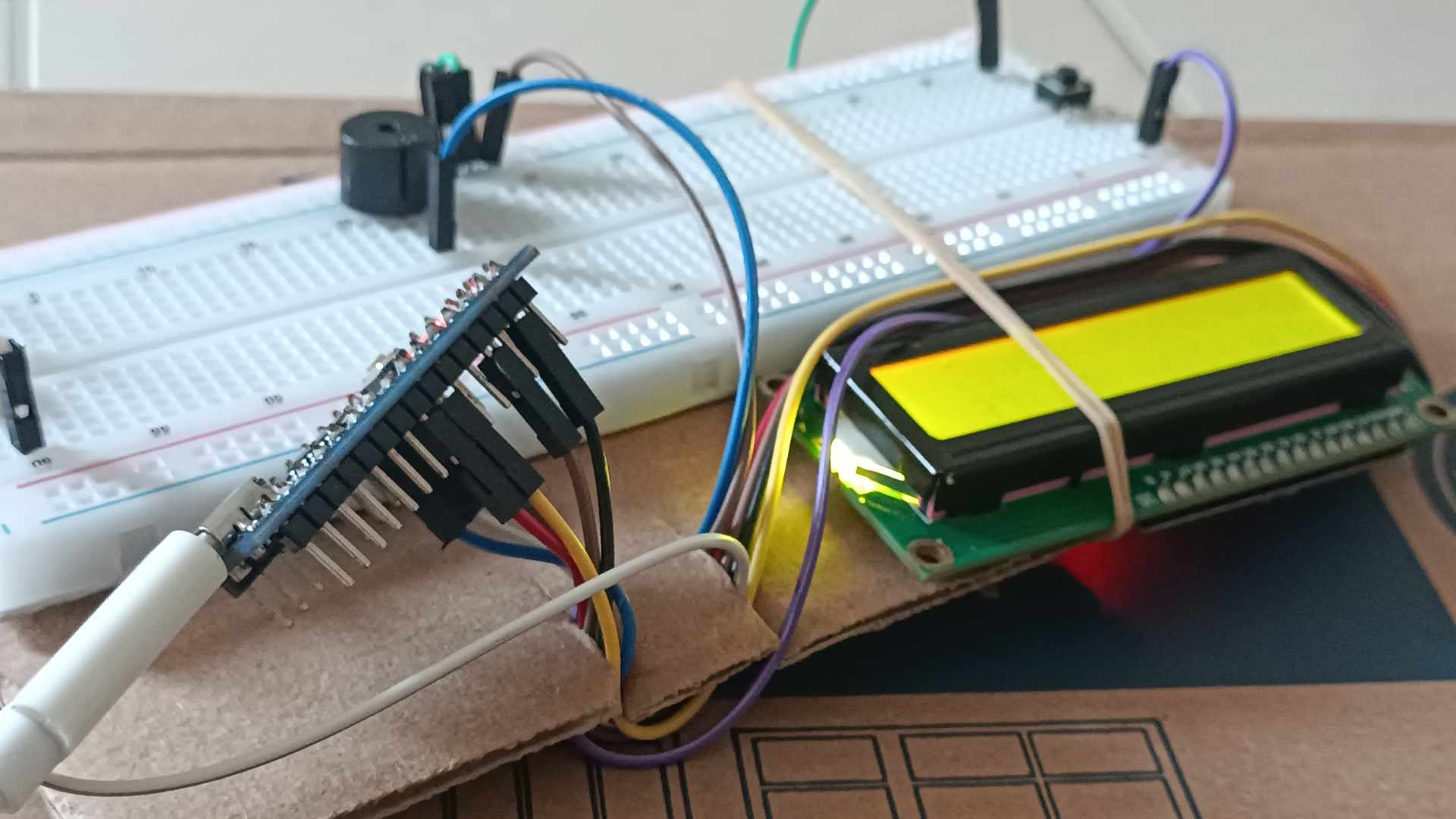

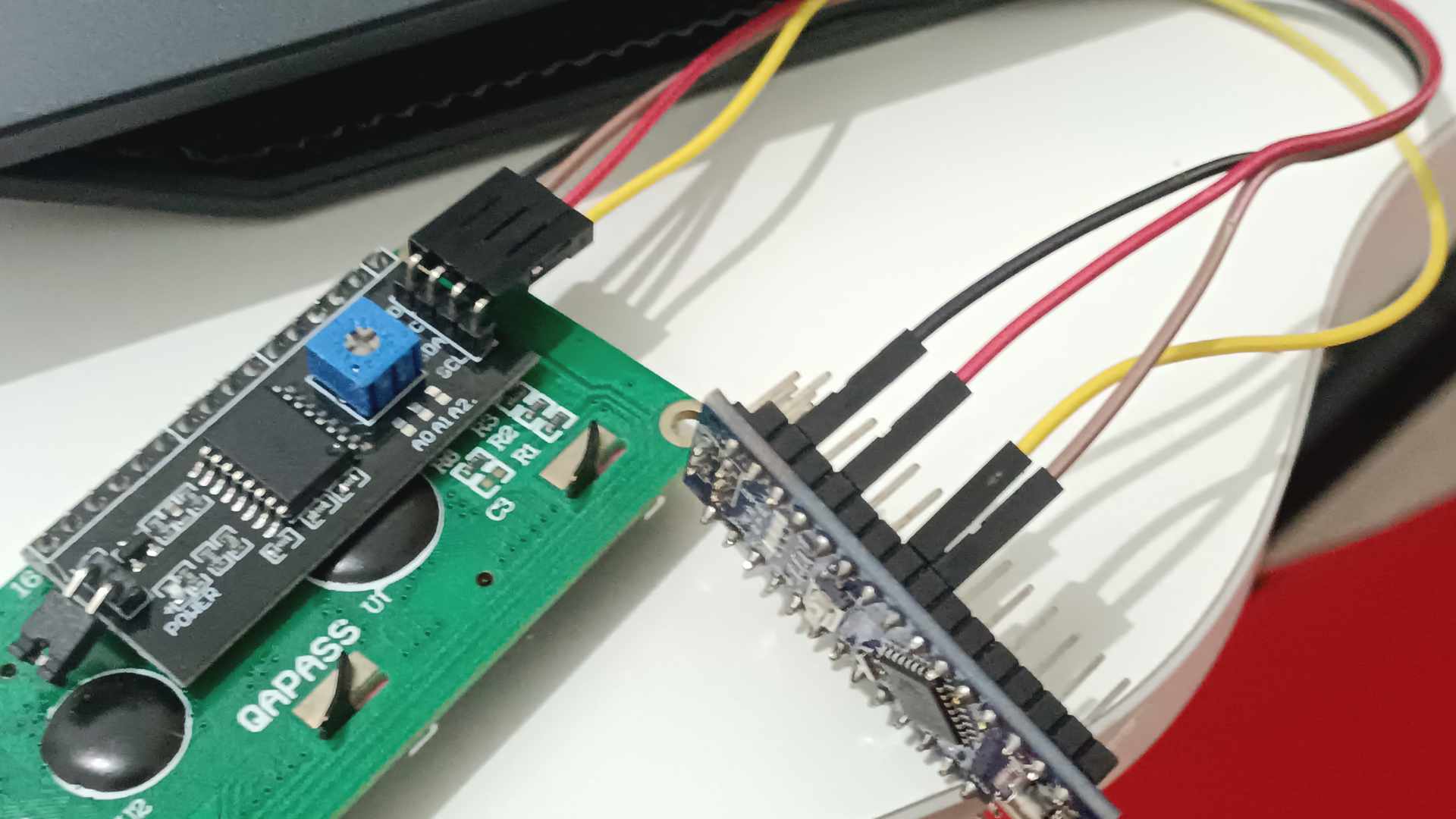

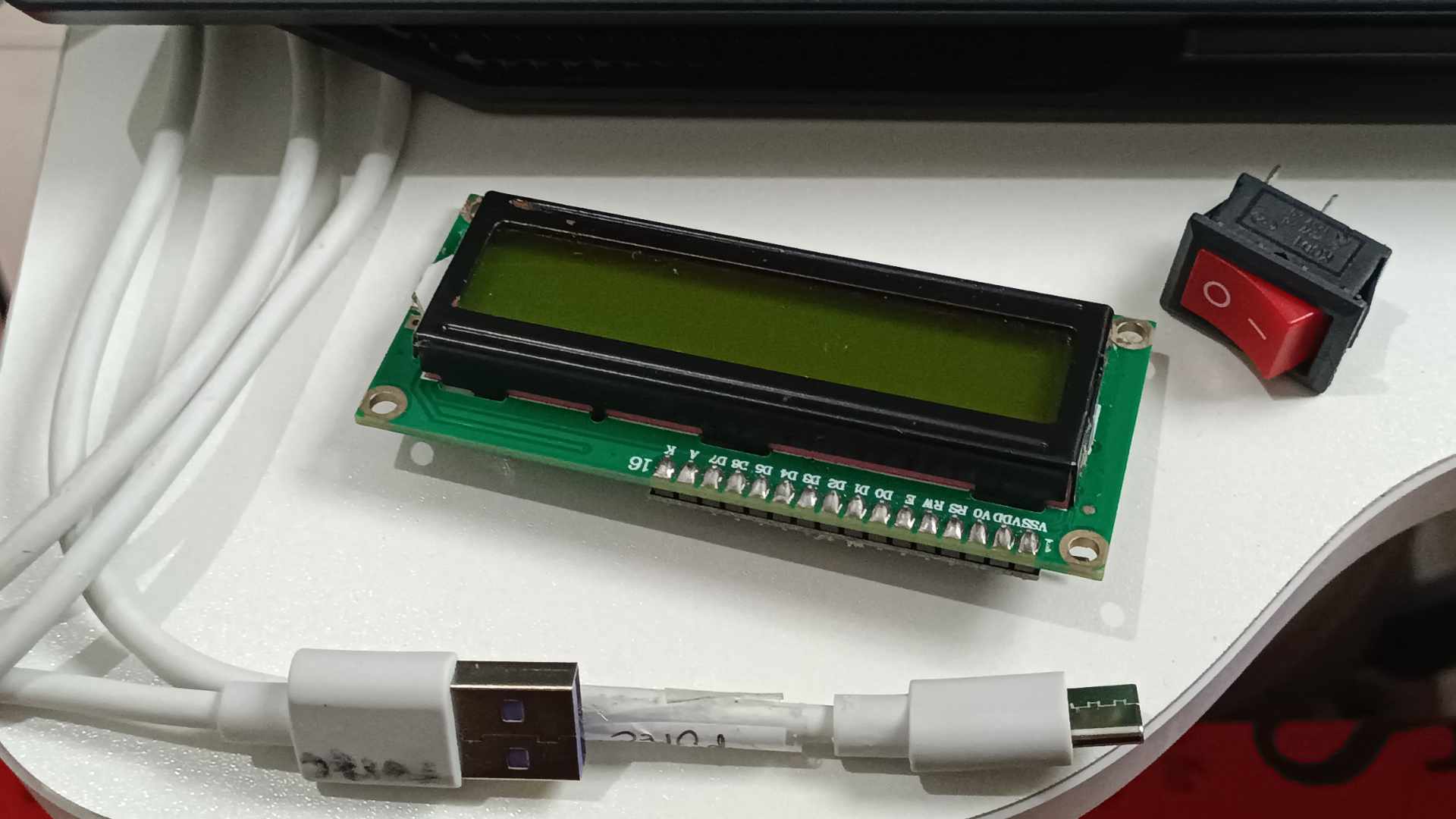

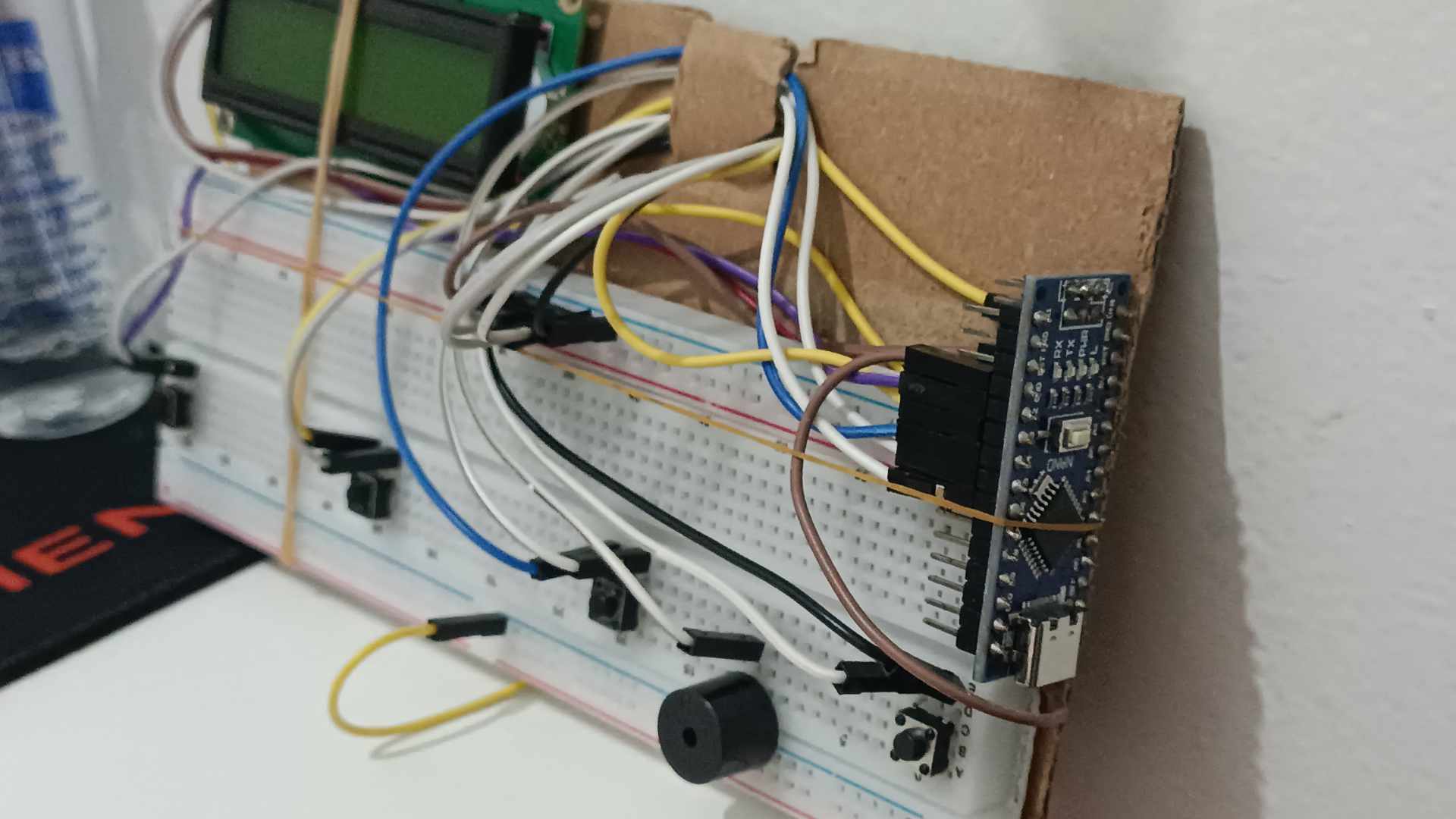

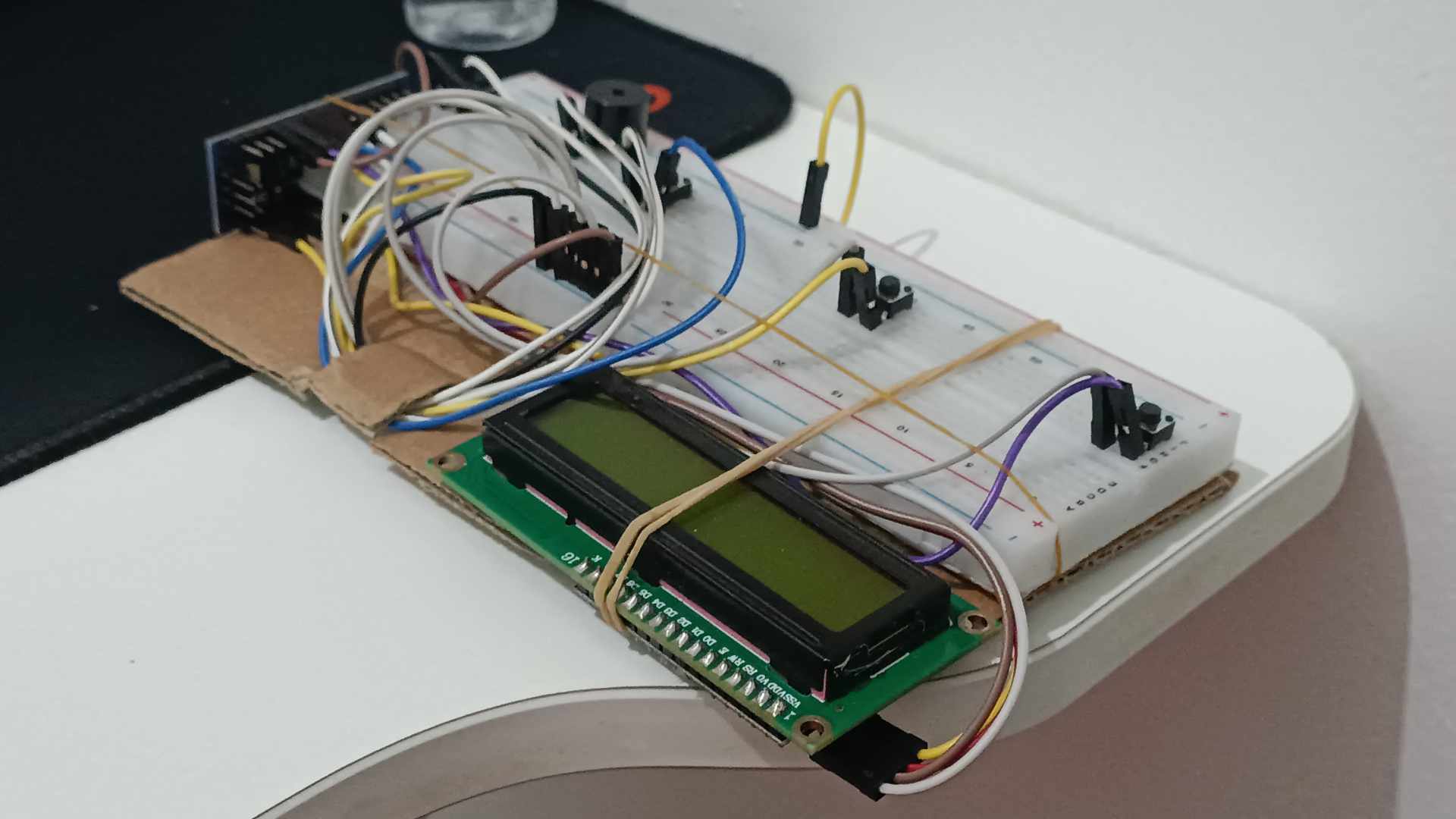

A highly technical hardware study focused on building an embedded local game console prototype powered by an Arduino Nano, featuring physical inputs, dynamic buzzer audio feedback, a 20x4 character LCD screen, and an advanced closed-loop proportional-integral-derivative (PID) mechanical feedback system.

The prototype demonstrates the integration of complex physical actuation into local game-loop architectures. To achieve buttery-smooth, jitter-free physical game feedback (such as mechanical force-feedback, dynamic physical obstacles, or physical telemetry gauges), the console deploys a dedicated servo motor governed by a PID feedback loop (via the `PID_v1` library) operating at a high-speed `20ms` sample rate (50Hz) on digital pin 5. The control loop uses real-time position reading as input feedback and dynamically calculates the output power to transition seamlessly between targeted coordinates (switching between 20° and 160° states) without mechanical overshoot or structural oscillation.

All time-critical tasks—including the 5-second setpoint switches and the active PID calculation—are managed concurrently using non-blocking asynchronous clocks (`millis()`), ensuring that the system's main game loop remains completely fluid and never freezes. Hardware states and PID performance are continuously broadcasted via high-speed `115200 bps` Serial diagnostic telemetry for real-time analysis.
